HEAVY DUTY UAV LANDING GEAR


HEAVY DUTY UAV LANDING GEAR



Aero Telemetry has designed and manufactured hydraulically actuated  landing gear for several unique unmanned air vehicle projects.


UAV LANDING GEAR SPECS


Heavy Duty, universal mount hydraulic retractable landing gear for Unmanned Air Vehicles up to 2200 lbs (1000Kg)

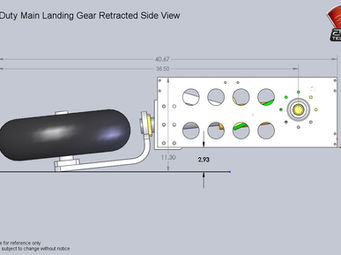

Retractable Main Landing Gear - Technical Specifications:

  • Structural Material: Steel Alloy

  • Retraction Method: 2000psi Hydraulic Actuator

  • Length from pivot to center of axle: 28.50 inches

  • Length from pivot to bottom of tire (uncompressed): 36.50 inches

  • Max Stroke length: 7.75 inches

  • Max Main gear load (per strut) = 2000 lbs

  • Wheel: Goodrich/Goodyear alloy steel

  • Tire: Single Goodrich/Goodyear Pneumatic Ribbed with tube, 16 inch diameter

  • *Weight as shown: 30 lbs each side

  • *Weight does not include hydraulic lines, wiring harness, switches, hydraulic pump, steel frame or brakes.





Nose-Wheel Landing Gear Steerable, Retractable - Technical Specifications:

  • Structural Material: Steel Alloy

  • Retraction Method: 2000 psi Hydraulic Actuator

  • Length from pivot to center of axle: 26.00 inches

  • Length from pivot to bottom of tire (uncompressed): 32-34 inches

  • Max Stroke length: 6.99 inches

  • Max Nose gear load = 1000 lbs

  • Steering Method: Pushrod or cable pull system

  • Wheel: Goodrich/Goodyear alloy steel

  • Tire: Goodrich/Goodyear Pneumatic Ribbed with tube, 12-14 inch max diameter

  • *Weight as shown: 30 lbs

  • *Weight does not include hydraulic lines, wiring harness, switches, hydraulic pump, steel frame or brakes.



Options for Aero Telemetry Standard Landing Gear System:

  1. Disc Brake system for Main Landing Gear (1 for each side, left and right)

  2. Disc Brake system for nose-wheel landing gear

  3. 24VDC battery system for hydraulic pump. Includes aluminum mounting enclosure.

All specifications subject to change without notice.

Contact us for pricing and availability.
