OMNI-DIRECTIONAL BASE STATION ANTENNAS

  • UHF / LL / UL / S & C-Band Omni-Directional Data Antennas

  • 400 - 500 MHz, Portable Base Station Antenna, 6.2dB Gain

  • Base Antenna 6dB Gain

​

AIRBORNE INSTRUMENTATION

  • Miniature Airborne L/S-Band Blade Antenna

  • Airborne L/S-Band Blade Antenna

  • Airborne Broadband Flush-Mounted Antennas

  • Airborne GPS Antennas

  • Airborne UHF/L Band Blade

​

DIRECTIONAL GROUND BASED ANTENNAS

  • 1.4 - 2.5 GHz, Elliptical Parabolic Reflector Antenna



SPECIAL USE

  • Helicopter GPS antenna system

OMNI-DIRECTIONAL BASE STATION ANTENNAS

OMNI-DIRECTIONAL BASE STATION ANTENNAS

​

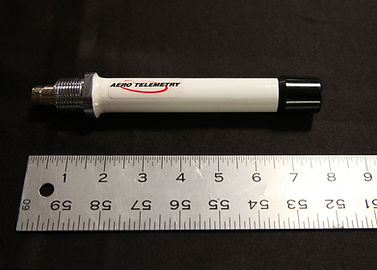

2.2 - 2.4 GHZ, OMNI DIRECTIONAL DATA ANTENNA

​

REF: ANT-OA-10-S

  • 2.2 to 2.4 GHz

  • 2.4 to 2.5 GHz ISM / WiFi Band

  • N-Connector, 4 dB gain

  • Fiberglass radome, DC grounded


1.35 - 1.55 GHZ, OMNI DIRECTIONAL DATA ANTENNA

​

REF: ANT-OA-10-LL

  • 1.35 to 1.55 GHz

  • N-Connector, 4 dB gain

  • Fiberglass radome, DC grounded

AVIATION BAND BASE ANTENNA 6DB GAIN

​

REF: ANT-BANT

  • 117 MHz to 147 MHz Omni Directional, 6 dB Gain

  • General Aviation band

AIRBORNE INSTRUMENTATION

MINIATURE AIRBORNE L/S-BAND BLADE ANTENNA

​

These miniature aerodynamic, bi-convex blade antennas, are pretuned to a specific frequency range. They can be made to work singly, or in arrays of 2, 3, or more. Matching power dividers, specifically for multi-antenna use are also available.​

Miniture Airborne L_S Band Blade.JPG

REF: ANT-AI

Miniature, 1.5" height

High performance aircraft, missiles and drones

Video and Telemetry

Broadband, omni-directional

Linear polarization



NORMAL THERMAL ENVIRONMENT

Frequency: 1.435 - 1.54 GHz, or custom made to order

Weight: 1.20 oz. (34.00 gm.)

Temperature Cont.: 400°F (205°C) Temperature 20 Sec.: 850°F (450°C)



COMMON SPECIFICATIONS

VSWR: 1.5:1

Drag: (Mach 2.50 at 50,000 ft) 1.25 lbs. (0.57 Kg.)

Height: 1.58 in. (4.02 cm.)

Impedance: 50 Ohms

AIRBORNE S-BAND BLADE ANTENNA

​


REF: ANT-625202-S

S-Band Antenna 2.2 - 2.5 GHz

Video and Telemetry Data

TNC Connector



ELECTRICAL

VSWR: < 3.0:1

Pattern: Omni-Directional

Efficiency: 85%

Polarization: Vertical

Impedance: 50 Ohms

Power: 100 W



MECHANICAL

Weight: 7 oz.

Height: 3.12 in.

Length: 5.25 in.

Width: 2.00 in

Material: Aluminum base fiberglass radome

Finish: Polyurethane enamel-skydrol resistant

Connector: TNC



​

AIRBORNE ISM / L-BAND BLADE ANTENNA

​

Airborne L_S Band Blade Antenna.JPG

REF: ANT-625202-D

Dual Band Antenna 860 - 1150 MHz,1.7 - 1.85 GHz

Video and telemetry data

SMA Male on 6 inch pigtail

Skydrol White Enamel finish



ELECTRICAL

VSWR: 2.0:1

Pattern: Omni-Directional

Efficiency: 85%

Polarization: Vertical

Impedance: 50 Ohms

Power: 25 W



MECHANICAL

Weight: 13 oz.

Height: 4.625 in.

Length: 5.25 in.

Width: 1.75 in

Material: Aluminum base fiberglass radome

Finish: Polyurethane enamel-skydrol resistant

Connector: SMA Male



​

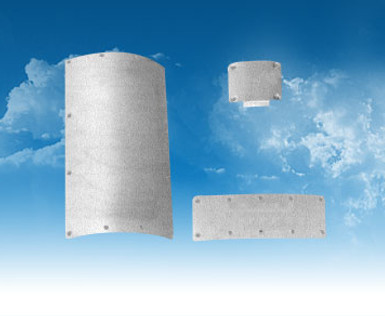

AIRBORNE BROADBAND FLUSH-MOUNTED ANTENNAS

​

These flush-mounted airborne antennas employ "state-of-the-art" design techniques which result in optimum performance, commensurate with minimum size. Flush-mounted antennas are required in many applications where drag characteristics of blade antennas cannot be tolerated or where vehicle handling equipment or launching rails prohibit protrusions beyond the normal skin line. The antennas are designed to function singly or in arrays of two, three or more, using matched power dividers specifically designed to operate with multi-antenna installations.



Antennas can be configured to your vehicle diameter. Power Dividers are available to join the antenna elements into any array. Call for details.


​

REF: ANT-T-BBFM

Optimum performance

Extremely small size

Flight proven



SPECIFICATIONS

Frequency: 0.215 - 2.45 GHz (tuned to exact frequency)

VSWR: (Max.) 1.5:1 - 1.8:1

Connector Type: TNC or SMA

Weight: 2.5 - 23.6 oz.

Impedance: 50 Ohms

Operating Temperature: 350°F Continuous, 1000°F 20 Sec.

Polarization: Linear

Pattern Coverage: Hemispherical

AIRBORNE UHF/L BAND BLADE

​

This series of low profile antennas serve a critical need for use on small and medium sized vehicles where internal space is not available for flush cavity antennas. Their streamlined aerodynamic form factor yields a lightweight, low drag antenna which universally mounts to any vehicle structure, without modification.



Two types of antennas have been designed for each discrete operating band, depending on thermal environment. The antennas may be used singly, or in arrays of two or more, depending on pattern requirements. Matched power dividers and cables are available for interconnecting multi-antenna installations.

Airborne UHF_L Band Blade.JPG

REF: ANT-105002



  • Low profile

  • Antenna tuned to frequency

  • Must specify vehicle diameter or flat

  • High performance aircraft, missiles and drones

  • Video and Telemetry

  • Linear polarization





NORMAL THERMAL ENVIRONMENT
UHF-BAND

Function: Command

Frequency Range: 406-550 MHz

Weight: 3.00 oz.

Temperature Cont: 400°F

Temperature 20 Sec: 600°F



L-BAND

Function: Telemetry

Frequency Range: 1710-1850 MHz

Weight: 3.00 oz.

Temperature Cont: 400°F

Temperature 20 Sec: 600°F



EXTREME THERMAL ENVIRONMENT
UHF-BAND

Function: Command

Frequency Range: 406-550 MHz

Weight: 6.00 oz.

Temperature Cont: 800°F

Temperature 20 Sec: 1100°F



L-BAND

Function: Telemetry

Frequency Range: 1710-1850 MHz

Weight: 6.00 oz.

Temperature Cont: 800°F

Temperature 20 Sec: 1100°F

Elliptical, Parabolic, Direction Finding System

DIRECTIONAL GROUND BASED ANTENNAS



ELLIPTICAL PARABOLIC REFLECTOR ANTENNA

​

This elliptical parabolic antenna has a 15 in x 30 in fiberglass reflector with interchangeable feeds available in the frequency bands between 1.4 and 2.5 GHZ.

​

Feeds available are linear polarized, circular polarized, dual polarized, switchable, wider bandwidths or any combination.

REF: ANT-S-PA

​

SPECIFICATIONS

Frequency: 1435-1540, 1710-1850 MHz; 2.2 - 2.3, 2.3 - 2.4 and 2.4 - 2.5 GHz

VSWR: 1.5:1 Maximum

Polarization: Linear, Circular, Dual

Gain: 19dB

Azinmuth Half-Power Beamwidth: 14 degrees

Elevation Half-Power Beamwidth: 28 degrees

Connector: SMA or N

AIRBORNE GPS ANTENNAS

​

Designed for aviation, automotive, marine, portable and hand-held applications. Frequency: 1575 ± 5 MHz. Polarization: Right hand circular. Available with filter/ pre-amplifier (active antennas provide pre-amp gain of 16 and 26 dB, and filtering is 20 dB at 140 MHz). Noise figures: <2.5 dB, and low elevation gain is 3 dBic at 10°. These GPS antennas offer a variety of mounts and connector configurations. Call for details on your application.



REF: ANT-AGPS

  • Replacement item for DRV Series™

  • Passive GPS antenna for UAV's

  • Low-profile and low-drag

  • COTS



SPECIFICATIONS

Frequency: 1575 ±5 MHz

Active Antenna Gain: 16 dB or 26 dB with pre-amps

Polarization: RHCP

Noise Figures: < 2.5 dB

Low EL Gain: 3 dBic @ 10°

Filter: 20 dB @ 140 MHz
